Swarovski - ATS 65 HD/25-50x E/P & SOC Scope
+2

Swarovski - ATS 65 HD/25-50x E/P & SOC Scope

Store/Optics/Swarovski
£2 445.00
In stock
Save this product for later
Share this product with your friends
ShareSharePin it

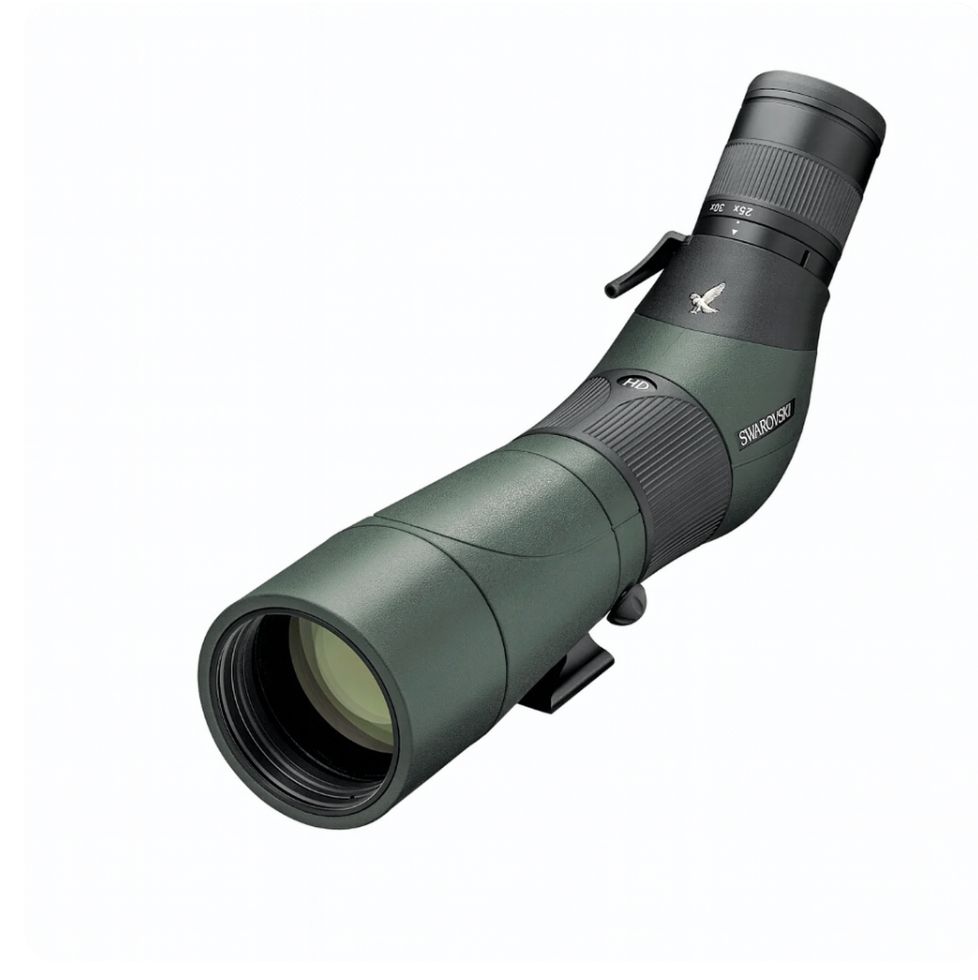

Swarovski - ATS 65 HD/25-50x E/P & SOC Scope
Store/Optics/Swarovski
Product Details

INCLUDES 2 YEAR WARRANTY

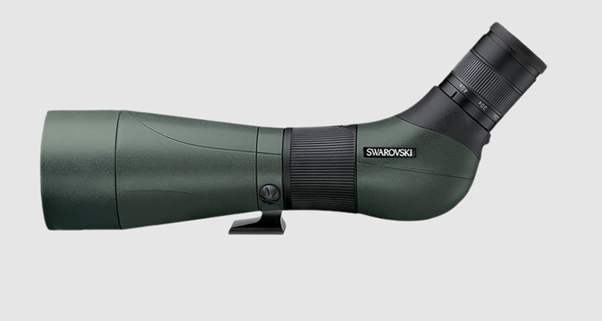

Swarovski ATS STS 65 HD High Definition Spotting Scopes

Ideal for use when frequently changing viewing location: these extremely easy to handle and compact telescopes have a robust aluminium housing and fully rubberised armouring which delivers a unsurpassed performance offering all-round, colour-fidelity with strong contrast-rich images. Extremely detailed observation is the norm with a close focusing facility down to 3 m (10 ft).

overview

Integrated objective lens protection. Stops glare and diffused light as well as protecting against rain and snow. Lock mechanism in ultimate extended position: cannot move on its own and silent to handle

hood
Very light weight of only 1.100 g (38.8 oz), despite the fully rubberised armouring: easy to handle even in cold weather

glass

Extremely light, but very sturdy light alloy housing

in use
Tilting tripod ring (ATS 65/ATS 65 HD models only) for setting to preferred observation position. Standardized foot fits Swarovski tripods without additional plate or all tripods with 1/4" and 3/8" threads

tripod adapter

Internal focusing for dustproof and watertight qualities. No fogging thanks to nitrogen filling, protected against infestation of fungus

in use

Easy-grip ergonomically-positioned focusing ring with larger grooves for quick and precise focusin

grip
Removable aid for quick target pick-up
handheld adapter

Cover glass to protect against dust, dirt and water, when eyepiece is not connected

eyepiece
E.g. zoom eyepiece with 20-60 x magnification: full field of view even for eyeglass-wearers due to individually adjustable twist-in eye cups Bayonet connector for simple and rapid changeover of eyepiece and camera adapters

range eyepiece
Functional temperature: -20 to +55° C (-4 to +131° F)
Storage temperature: -30 to + 70° C (-22 to +158° F)
Submersion tightness: 4 m (13 ft) (filled with nitrogen)
Objective lens focal length: 460 mm (18.11 in)

ATS 65
ATS 65 HD
STS 65
STS 65 HD
Eyepiece
20xSW
Eyepiece
30xSW
Eyepiece
45xSW
Eyepiece
20-60xS
Magnification - - 20x 30x 45x 20-60x
Objective lens diameter (mm) 65 65 - - - -
Objective lens diameter (in) 2.56 2.56 - - - -
Exit pupil, diameter (mm) - - 3.3 2.2 1.4 3.3-1.1
Exit pupil, diameter (in) - - 0.13 0.09 0.06 0.13-0.04
Eye relief (mm) - - 17 20 18 17
Eye relief (in) - - 0.67 0.79 0.71 0.67
Field of view, real (m/100 m) - - 60 42 28 36-20
Field of view, real (ft/1000 yds) - - 180 126 84 108-60
Field of view, real (degree) - - 3.44 2.4 1.6 2.1-1.1
Field of view, apparent (degree) - - 66 66 66 40-65
Shortest focusing distance (m) 3 3 - - - -
Shortest focusing distance (ft) 10 10 - - - -
Diopter correction at 8 (dpt) > 5 > 5 - - - -
Twilight factor (DIN 58388) - - 36 44 54 36-62
Objective filter thread M 67 x 0.75 M 67 x 0.75 - - - -
Length, approx. (mm) 325 305 70 73 78 86
Length, approx. (in) 12.8 12.0 2.76 2.87 3.1 3.39
Weight approx. (g) 1100 /
HD 1130
1080 /
HD 1110
220 250 260 260
Weight approx. (oz) 38.8 / 39.9 38.1 / 39.2 7.8 8.8 9.2 9.2
